MAX BR1 Pro CAT-20

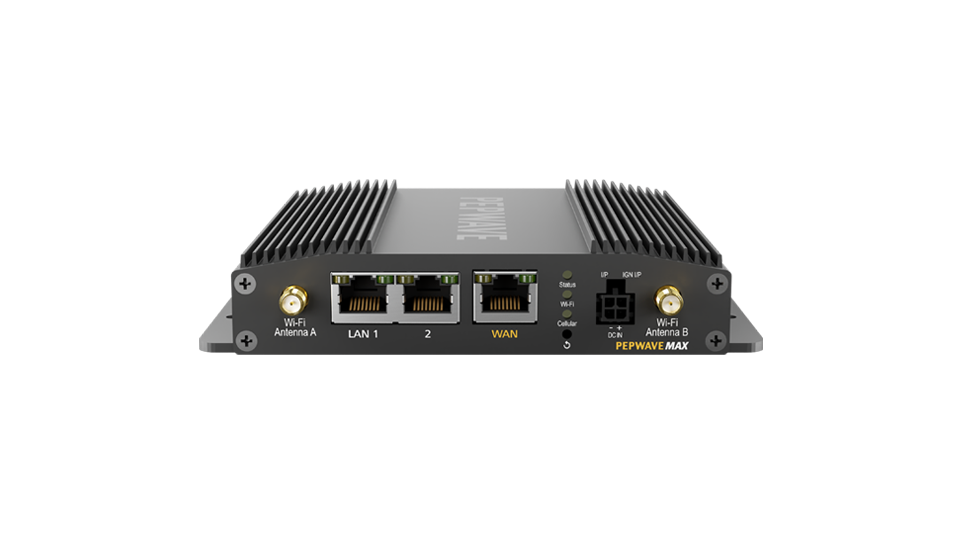

The MAX BR1 Pro CAT-20 is an industrial LTE router equipped with a 2.5Gb/sec WAN port, Wi-Fi 6, and low-profile Form Factor. This router is integrated with the new generation multi-core CPU that ensures delivery of gigabit speeds and has a rated throughput of 1Gb/sec. The BR1 Pro CAT-20 supports a 2Gb/sec downlink data rate and a 150Mb/sec uplink data rate.

  • SpeedFusion Features: Hot Failover, WAN Smoothing, Bandwidth Bonding*
  • 1x 10/100/1000/2500M Ethernet WAN (WAN port can act as a LAN port if needed)
  • 1x LTE-A Pro Modem with Redundant SIM Slots
  • 2x 10/100/1000M Ethernet LAN
  • Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MU-MIMO Wi-Fi WAN and/or AP
  • Low-Profile Form Factor
  • 1 Gbps Throughput
  • Drop-in Mode, Load Balancing / Failover, Ignition Sensing
  • Cellular Data Rate (Downlink/Uplink): CAT-20: 2 Gbps / 211 Mbps
  • InControl2
